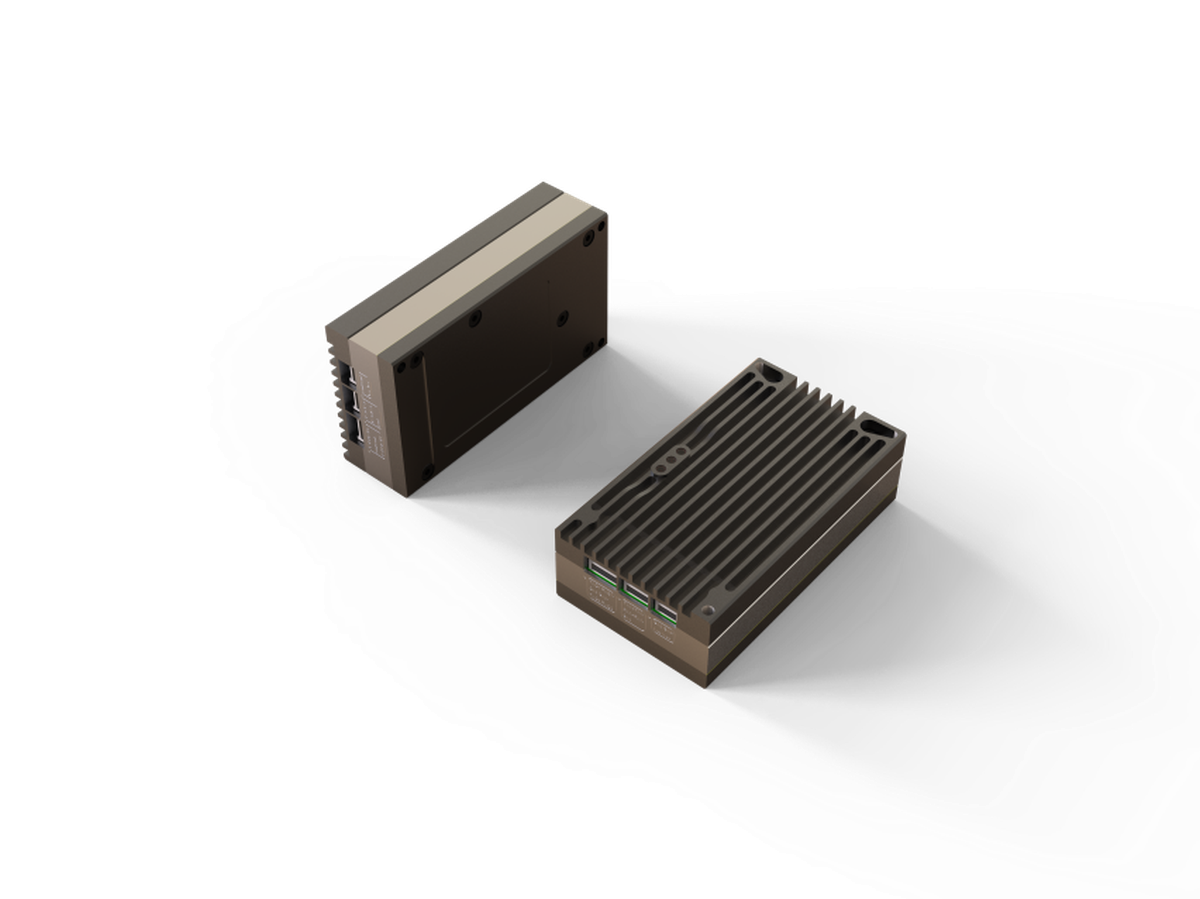

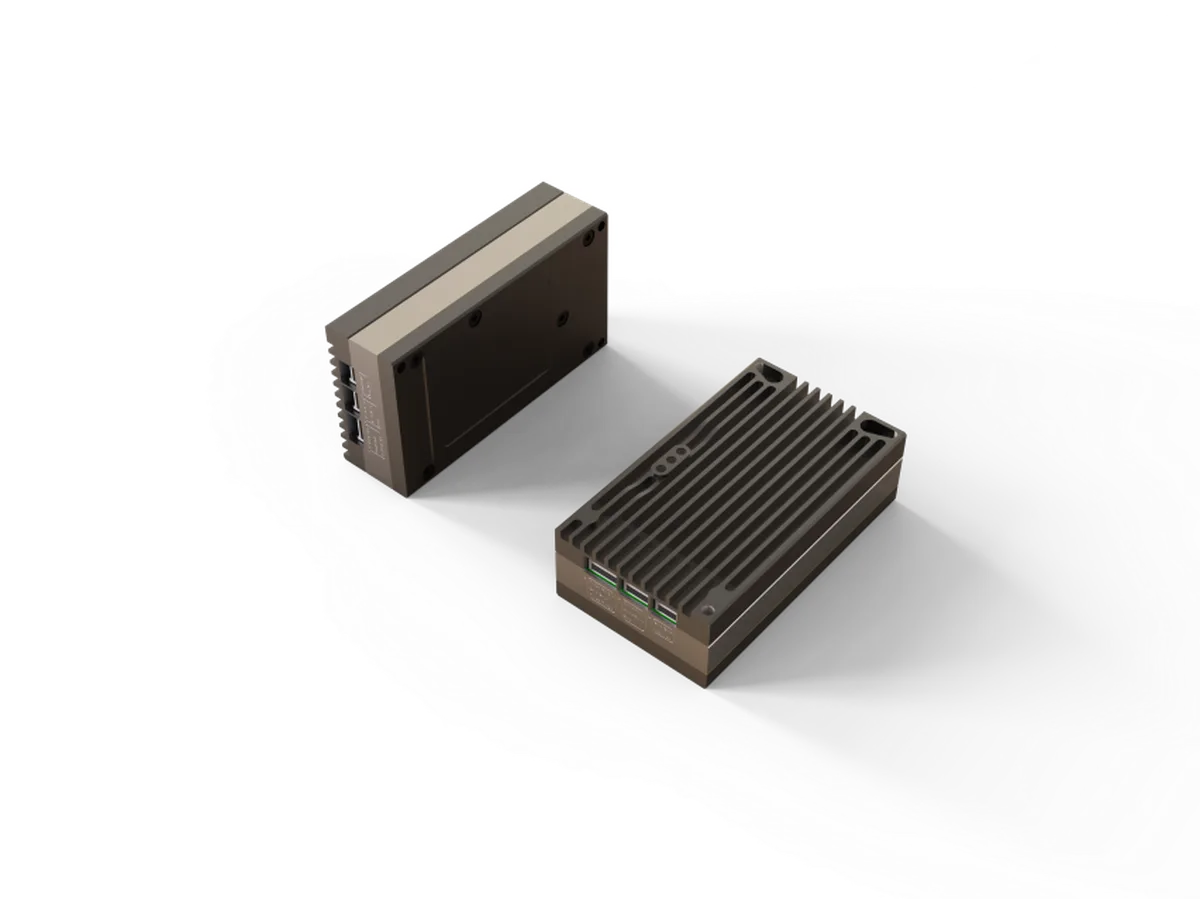

A27mini-1400
0.5 W single-band mini link (1335–1475 MHz)
Communication distance
≈20 km
Datasheet / marketing figures under ideal line-of-sight; verify band plans, ERP, and SKU availability before procurement.
TDD video & data link
- Single-band
- 0.5 W
- 1335–1475 MHz
- ≈20 km
Overview
Summary
Mini footprint with 0.5 W TX for small/medium UAVs needing more range.
Highlights
Key advantages
- Compact and light for long-range FPV.
- Spectrum sensing & smart frequency pick
- Supports P2P/Star networking.
Specifications
Technical parameters
| Operating band | 1335–1475 MHz (customizable) |
|---|---|
| RF chains | 2T2R |
| TX power | 27 dBm (0.5 W), customizable |
| Channel BW | 10 MHz |
| Modulation | BPSK, QPSK |
| Max throughput | >8 Mbps |
| Encryption | AES |
| Latency | ≤10 ms |
| RF ports | MMCX ×2 |
| Interfaces | Power×1, Ethernet×1, TTL/RS232×1, SBUS/TTL×1 |
| Power draw | ≤7 W |
| Dimensions | 69.5 × 39.5 × 20.5 mm |
| Weight | 90 g |
| Supply | DC 9–26 V (typ. 12 V @ 0.6 A) |
| Temperature | -40 °C to +65 °C |
Figures are from marketing materials; confirm regulatory limits, band plans, and SKU availability with MDOT before procurement.
